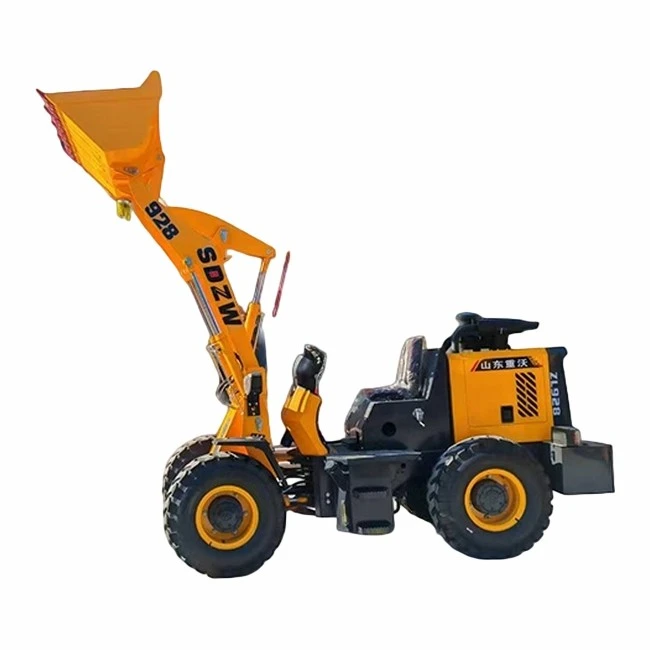

1.8 Ton Mini Wheel Loader
With a reinforced frame, durable hydraulic system, and multiple attachment options, this Small Wheel Loader is an ideal solution for customers who need a versatile machine for loading, lifting, transporting, and cleaning tasks.
Key Features of 1.1 Ton Mini Wheel Loader
Powerful Diesel Engine for Heavy-Duty Operations
Equipped with a 22HP single-cylinder diesel engine, this Diesel Wheel Loader provides strong torque and stable power output. It performs well in outdoor environments without electricity supply, handling tasks such as loading gravel, soil, feed, and agricultural materials with ease.
4WD System with Excellent Off-Road Performance
The full-time 4WD Mini Wheel Loader offers strong ground grip and climbing ability. It can operate smoothly on muddy roads, farmland, gravel surfaces, slopes, and uneven construction sites where standard two-wheel-drive machines may struggle.
Compact Design for Limited Working Areas
The articulated steering structure provides a small turning radius and high maneuverability. This Compact Wheel Loader can easily work in narrow spaces such as farms, gardens, small construction sites, warehouses, and residential areas.
Durable Structure for Long-Term Use
Built with a reinforced welded frame, thickened lifting arms, heavy-duty hydraulic cylinders, and wear-resistant buckets, the machine is designed for continuous loading operations with improved durability and reduced maintenance requirements.
Simple Operation and Comfortable Driving
The hydraulic continuously variable transmission and centralized control lever make operation easy even for beginners. The machine can be equipped with a suspension seat, canopy, or fully enclosed cab to improve comfort during long working hours.
Multi-Functional Attachments Available
The Mini Loader supports quick attachment replacement, allowing users to install different tools according to job requirements:
Log grapple for wood handling
Bale grapple for agricultural materials
Fork attachment for pallet handling
Snow blade for snow removal
Mixing bucket for construction applications
One machine can handle multiple tasks and reduce labor costs.
Advantages of Our Small Wheel Loader
Compared with large loaders, this 1.1 Ton Mini Wheel Loader features lower fuel consumption, easier maintenance, and affordable spare parts, making it suitable for farms, small businesses, and individual operators.
The compact size and strong performance make it suitable for:
- Agricultural and livestock farms
- Small construction projects
- Landscaping and gardening
- Factory material transportation
- Road maintenance
- Snow clearing operations
The simple mechanical structure reduces electronic failures. The diesel engine, hydraulic components, and transmission system are designed for reliable operation in dusty, outdoor, and heavy-load environments.
The compact dimensions allow convenient transportation by ordinary trucks, helping users move the machine between different working locations quickly.
Application Areas
Agriculture & Farming
The Farm Wheel Loader is widely used for:
- Farm manure cleaning
- Feed transportation
- Hay and straw handling
- Fertilizer loading
- Orchard soil leveling
- Agricultural material transfer
Small Construction Projects
Suitable for:
- Sand and gravel loading
- Cement and construction material handling
- Ground leveling
- Foundation preparation
- Site cleaning
Municipal & Property Maintenance
Used for:
- Snow removal
- Waste transportation
- Roadside cleaning
- Small-scale landscaping projects
Technical Specifications
|
Item |
Specification |
|
Model |
1.1 Ton Mini Wheel Loader |
|
Rated Load Capacity |
800 kg |
|
Maximum Short-Term Load |
1000 kg |
|
Operating Weight |
1100 kg |
|
Bucket Capacity |
0.35 m³ |
|
Bucket Width |
1200 mm |
|
Maximum Lifting Height |
2800 mm |
|
Maximum Dumping Height |
2200 mm |
|
Dumping Reach |
450 mm |
|
Overall Dimension |
3400 × 1200 × 2100 mm |
|
Wheelbase |
1620 mm |
|
Ground Clearance |
220 mm |
|
Engine Power |
22HP Diesel Engine |
|
Drive System |
4 Wheel Drive |
|
Steering Type |
Articulated Hydraulic Steering |
|
Transmission |
Hydraulic Variable Transmission |
|
Tire Size |
6.00-12 Industrial Tires |
|
Maximum Speed |
0-18 km/h |
|
Gradeability |
25° |
Custom Options
To meet different working requirements, the 1.1 Ton Mini Wheel Loader can be customized with:
- Different diesel engine brands
- Fully enclosed cabin
- Air conditioning system
- Cooling fan
- LED working lights
- Heavy-duty counterweight
- Off-road tires
- Quick hitch system
- Various hydraulic attachments
Why Choose This 1.1 Ton Mini Wheel Loader?
The 1.1 Ton Mini Wheel Loader combines compact size, diesel power, 4WD capability, and multi-purpose functionality. It is an economical choice for customers looking for a reliable Small Wheel Loader for farming, construction, landscaping, and daily material handling operations.
