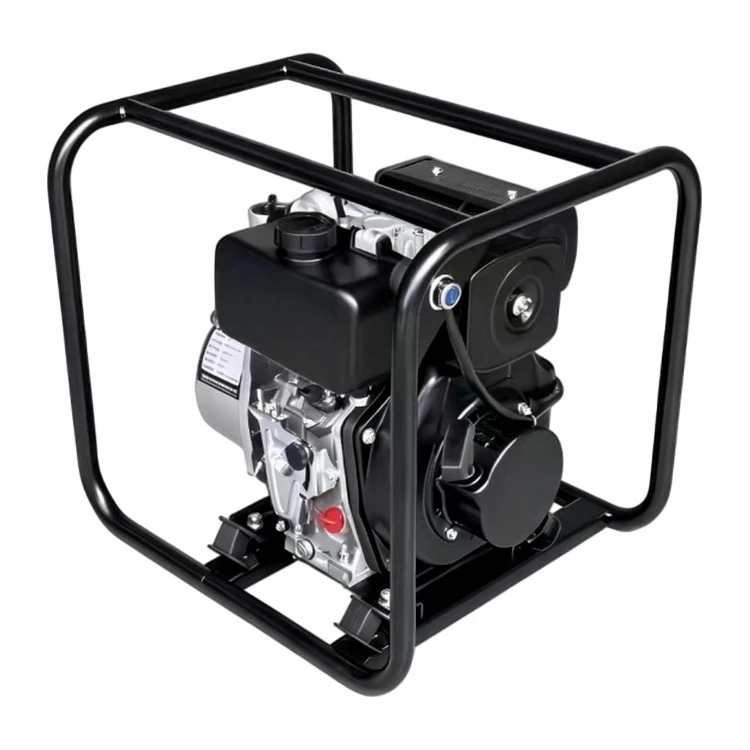

Diesel Self Priming Water Pump
Product Features
Off-Grid Independent Diesel Power Unit
Powered by a single-cylinder four-stroke air-cooled diesel engine, this pump runs entirely on mechanical diesel combustion without any electricity input. Operators can start the unit instantly in remote fields, construction sites or flood-stricken areas suffering power cuts. Stable continuous power output ensures long-hour reliable operation under emergency and harsh field conditions.
Efficient Self-Priming Design with Built-In Water Retention
Designed with axial backflow external mixed double-chamber self-priming structure, you only need to fill a small amount of water before the very first startup. The pump automatically exhausts internal air to build vacuum suction for fast water intake. A built-in one-way valve locks water inside the pump casing after shutdown, so no repeated priming is required for subsequent restarts. This eliminates the tedious manual water filling and air venting steps needed on traditional water pumps.
Wide Flow Channel for Excellent Solids Handling
The pump casing adopts an optimized widened non-clog flow path, allowing smooth passage of water mixed with silt, small gravel, aquatic weeds and fibrous debris. It works steadily with turbid raw water from rivers, ponds and construction pits, effectively reducing the risk of pipeline blockage and pump jamming during long continuous pumping shifts.
Compact Mobile Integrated Frame Structure
Mounted on an all-in-one welded steel frame fitted with transport wheels and a towing bracket, the whole unit keeps a compact footprint while maintaining lightweight characteristics. It can be manually pushed by a single worker or towed by vehicles for cross-site relocation, adapting well to flat ground and gently sloped working surfaces for flexible mobile pumping tasks.
Simple Robust Construction for Easy Maintenance
Designed with fewer mechanical parts and no complicated electronic control components, this pump achieves a low failure rate in long-term field use. The thick cast iron pump head delivers strong wear and corrosion resistance, while the air-cooled diesel engine ensures stable heat dissipation for round-the-clock continuous operation. Routine inspections, part replacement and fault troubleshooting can be completed without professional technical support.
Core Advantages
Unlike electric water pumps limited by cable length and power grid coverage, this diesel self priming water pump can be deployed anywhere your project requires. It builds full flow suction in a short time, delivering steady high-volume water transfer to cover large irrigation zones or drain flooded areas quickly, greatly shortening overall construction and emergency response time.
The diesel engine supports 24-hour continuous full-load operation with outstanding heat resistance and mechanical durability. Whether dealing with sudden urban waterlogging, river flood diversion or power failure emergencies, this pump runs non-stop without unexpected shutdowns, serving as essential emergency equipment for flood control and disaster relief.
Diesel fuel offers higher combustion efficiency compared to gasoline and electric drive solutions, providing stronger power output while cutting daily fuel expenditure. Wear-resistant cast iron construction minimizes component damage under harsh water quality conditions. Universal standard spare parts are widely available locally, keeping long-term repair and replacement costs well under control.
There is no need to install bottom valves or complex pipeline layouts before use. Standard inlet and outlet connectors allow fast hose connection, and the pump can be put into service right after basic priming for the first run. New operators can master basic operation within minutes, saving labor and time spent on complicated on-site assembly work.
Basic dust, rain and mud shielding is integrated into the frame structure, protecting core engine and pump components from direct exposure to intense sunlight, rainfall and airborne field dust. It maintains stable pumping performance in all outdoor weather conditions for year-round field deployment.
Main Application Scenarios
Agricultural Irrigation
Widely used for large farmland irrigation, orchard and nursery watering, vegetable plot sprinkling, fish pond water exchange and field flood drainage. It works perfectly in rural regions without fixed grid power for large-scale outdoor agricultural water transfer tasks.
Municipal Flood Control & Emergency Rescue
Ideal for rapid water removal from residential basements, underground parking lots and low-lying urban roads. Local government teams rely on this portable pump for village flood rescue, river water diversion and emergency dewatering after heavy rainstorms.
Construction Site Dewatering
Effectively clears accumulated water from foundation pits, tunnel projects and road construction zones. Contractors often select this off-grid pump for remote infrastructure projects where mains electricity is unavailable, solving on-site water intake and flood drainage challenges efficiently.
Municipal Landscape Maintenance
Suitable for greenbelt irrigation, river water replacement, landscape pond water replenishment and park flood clearance. Its high mobility allows operators to move the pump between multiple work points to finish various water supply and drainage assignments.
Aquaculture, Mining & Industrial Use
Farmers use this pump for fish pond water exchange and sludge discharge; factories and mining teams deploy it to drain workshop floodwater and pump turbid surface water in remote open-pit mine construction sites.
Technical Specifications
|
Engine Model |
Rated Power (kW/HP) |
Inlet Size (mm/inch) |
Outlet Size (mm/inch) |
Rated Flow (m³/h) |
Rated Head (m) |
Max Suction Lift (m) |
|
173F |
3.6kW/4.9HP |
50mm/2", 80mm/3" |
50mm/2", 80mm/3" |
36(2"), 60(3") |
25-32(2"), 18-28(3") |
10 |
|
178F |
4.5kW/6.0HP |
80mm/3" |
80mm/3" |
50-60 |
25-30 |
10 |
|
186F |
6.3kW/8.5HP |
80mm/3", 100mm/4" |
80mm/3", 100mm/4" |
40-60(3"), 80-96(4") |
30-70(3"), 20-30(4") |
10 |
|
188F |
7.5kW/10HP |
80mm/3", 100mm/4" |
80mm/3", 100mm/4" |
40-50(3"), 85-100(4") |
70-90(3"), 20-25(4") |
10 |
|
190F |
8.5kW/11.5HP |
80mm/3", 100mm/4", 150mm/6" |
80mm/3", 100mm/4", 150mm/6" |
40-60(3"), 80-100(4"), 120-150(6") |
25-90(3"), 25-30(4"), 15-25(6") |
10 |
|
192F |
8.2kW/11HP |
100mm/4", 150mm/6" |
100mm/4", 150mm/6" |
85-100(4"), 150-180(6") |
20-25(4"), 15-28(6") |
10 |
Frequently Asked Questions
1. Do I need to refill water every time before starting?
Only a small volume of priming water is required for the initial startup. The built-in check valve retains water inside the pump casing once you shut the unit down. You can restart and start pumping directly without repeated water filling for all subsequent operations.
2. Can this pump work in locations with no electricity supply?
Absolutely. This pump is fully driven by a diesel engine and requires no mains power connection or battery charging. It works reliably in mountainous regions, remote construction zones and areas hit by power outages, making it the top choice for off-grid water transfer jobs.
3. Is the pump capable of pumping silty water mixed with weeds and small debris?
Thanks to the widened clog-free flow channel design, the pump handles turbid water carrying silt, aquatic plants, small stones and fibrous waste smoothly. It is commonly used to draw raw water from farm ditches, rivers and muddy construction pits with very low risk of internal blockage.
4. Is continuous non-stop long-hour operation supported?
Equipped with a heavy-duty air-cooled diesel engine with efficient heat dissipation, this pump runs stably under full load for days continuously. It is frequently used for round-the-clock flood rescue and tight construction schedules with reliable sustained performance.
5. Can I customize pump specifications such as flow rate and head?
Full customization is available for all core configurations, including inlet and outlet diameter, flow capacity, total head, engine horsepower, wheel assembly, protective covers and startup modes (recoil start or electric start). Our engineering team will tailor the most suitable pump specification according to your actual working environment.
6. Is the pump easy to transport between different job sites?
The integrated wheeled towing frame enables effortless manual pushing by one person, and the towing bracket allows vehicle hauling for long-distance relocation. It is designed for frequent mobile operation across multiple scattered work locations.
7. Is daily maintenance complicated for this diesel self priming pump?
The pump adopts a simple mechanical structure without complex electronic parts, resulting in very low failure frequency. Regular maintenance only involves engine oil replacement and inlet filter cleaning. All core spare parts follow universal industry standards and can be purchased locally at most agricultural and hardware stores to keep repair costs low.
