Diesel Centrifugal Water Pump
Diesel Centrifugal Water Pump
All technical specs of our Diesel Centrifugal Water Pump, including water flow, total head, pipe caliber, engine power, startup mode, mobile chassis and external protection parts, support full customization. We tailor exclusive pump configurations according to actual working conditions, site terrain and long-term operation demands for global contractors and farm operators.

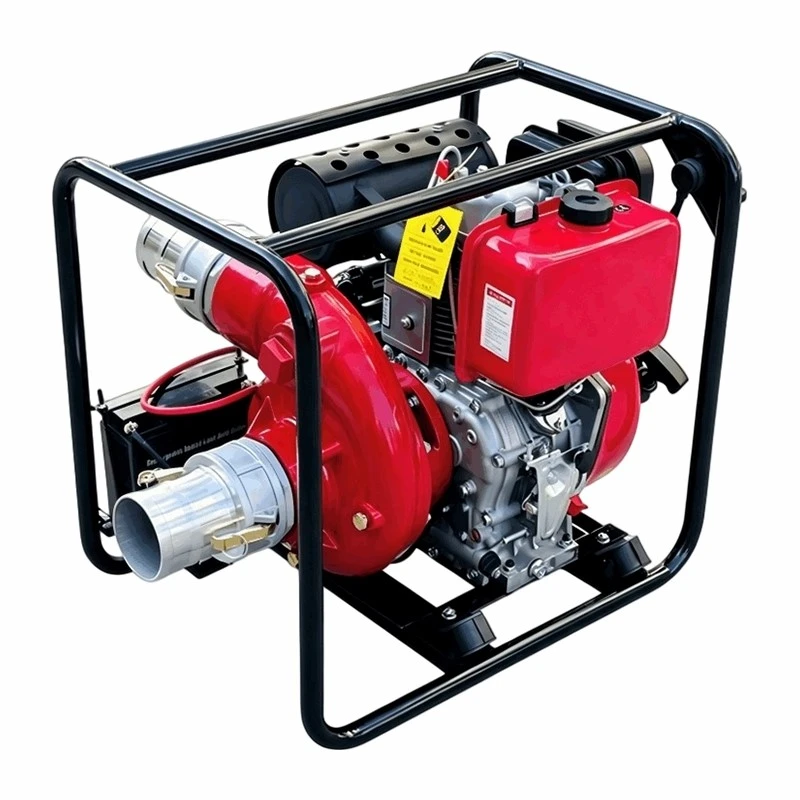

Built for off-grid outdoor water conveyance, this heavy-duty diesel centrifugal pump adopts pure mechanical diesel driving structure, getting rid of grid power restrictions completely. Different from self-priming pumps focused on easy priming, it features steady high water pressure and long-distance water delivery capacity. With rugged mechanical structure and flexible mobile design, it adapts to farm irrigation, site dewatering and emergency water diversion, serving as cost-effective pumping equipment for remote job sites with unstable power supply.
Fitted with industrial-grade diesel engine, the pump runs on pure mechanical power without power cables or external charging. It can start up instantly in remote farmland, construction sites and barren lands with no electricity access, outputting stable power for round-the-clock off-grid pumping tasks. Adopting professional centrifugal volute structure, the optimized widened impeller enhances water intake and pressurization efficiency, keeping balanced water pressure during operation. It performs far better than ordinary self-priming pumps on high-altitude water lifting and long-distance pipeline water transportation.

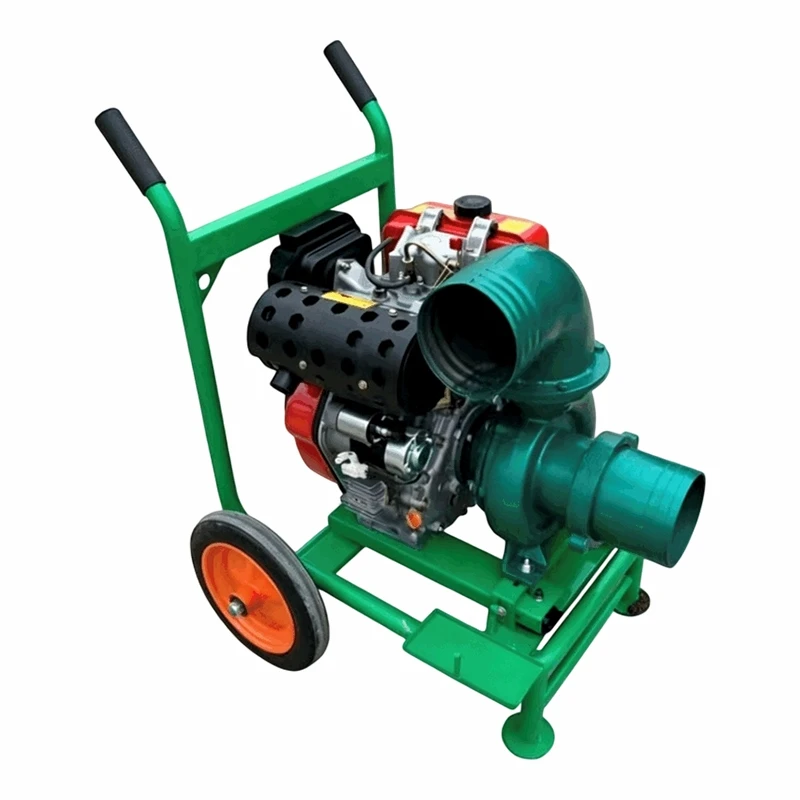

Simplified mechanical design removes redundant electronic components to cut daily failure risks. The thick cast iron pump body is wear-resistant, impact-proof and anti-corrosive, matched with high-efficiency engine heat dissipation structure to support full-load continuous operation. The streamlined internal flow channel ensures smooth water delivery, tolerating river water, well water and water mixed with tiny sediment and fine debris, fully satisfying daily water intake and drainage needs. The whole unit adopts integrated compact frame, equipped with optional two-wheel or four-wheel mobile base. Balanced weight distribution enables easy pushing and towing, adapting to sloped roads and scattered operation sites for flexible cross-site relocation.
This diesel centrifugal water pump stands out for ultra-stable high lift and long-distance water delivery performance. It supports hundreds of meters pipeline water transportation and uphill water supply, becoming the preferred pumping equipment for mountain orchards and terraced farmland irrigation. Powered by diesel engine with sufficient torque reserve, it outputs consistent water pressure without flow fluctuation, greatly boosting working efficiency for large-area farming and engineering drainage projects.
Designed with full outdoor protective structure, the pump resists sunlight exposure, rain erosion and dusty surroundings, realizing all-season outdoor operation. Compared with cable-limited electric pumps and high-fuel-consumption gasoline pumps, this diesel pump features lower running cost and stronger durability. All spare parts adopt universal industrial specifications, easy to purchase locally worldwide, which simplifies daily maintenance and cuts long-term operating expenditure. Its uniform water outflow avoids water surge damage to crop seedlings, taking into account both refined agricultural irrigation and rapid emergency drainage demands.
Widely applicable to diverse working scenarios, the pump handles field irrigation, orchard uphill water delivery, seedling spraying, river water diversion and fish pond water replenishment, solving water supply difficulties for power-free rural areas. It is also applicable to foundation pit dewatering, tunnel water cleaning and temporary water supply for remote infrastructure construction.
For drought relief and flood prevention work, it supports cross-region water diversion, rural emergency water supply and mild waterlogging drainage. It can meet municipal greening irrigation, landscape water replenishment and road vegetation maintenance requirements, and also serves aquaculture, mine water drainage and factory on-site dewatering tasks.
Technical Specifications
|
Engine Model |
Rated Power (kW/HP) |
Inlet Diameter (mm/inch) |
Outlet Diameter (mm/inch) |
Rated Flow (m³/h) |
Rated Head (m) |
Max Suction Lift (m) |
Features & Application Scenarios |
|
173F |
3.6kW/4.9HP |
50mm/2", 80mm/3" |
50mm/2", 80mm/3" |
36(2"), 60(3") |
25-32(2"), 18-28(3") |
8 |
Compact structure and light weight, ideal for small-scale agricultural irrigation and household water supply. Perfect for small plot irrigation and courtyard drainage tasks. |
|
178F |
4.5kW/6.0HP |
80mm/3" |
80mm/3" |
50-60 |
25-30 |
8 |
Features sufficient power output and low fuel consumption. Suitable for connected farmland irrigation, orchard watering and small-scale engineering drainage projects. |
|
186F |
6.3kW/8.5HP |
80mm/3", 100mm/4" |
80mm/3", 100mm/4" |
40-60(3"), 80-96(4") |
30-70(3"), 20-30(4") |
8 |
Versatile for agricultural irrigation, flood prevention and engineering drainage. High-lift version meets mountain water delivery demands, while large-flow version supports large-area farmland irrigation and drainage. |
|
188F |
7.5kW/10HP |
80mm/3", 100mm/4" |
80mm/3", 100mm/4" |
40-50(3"), 85-100(4") |
70-90(3"), 20-25(4") |
8 |
Powerful and stable high-lift performance, designed for high-altitude and long-distance water delivery. Ideal for mountain and hilly area water supply, as well as construction site water conveyance. |
|
190F |
8.5kW/11.5HP |
80mm/3", 100mm/4", 150mm/6" |
80mm/3", 100mm/4", 150mm/6" |
40-60(3"), 80-100(4"), 120-150(6") |
25-90(3"), 25-30(4"), 15-25(6") |
8 |
Equipped with multiple caliber options, features strong operational stability and large water flow. Widely used for large-scale farm irrigation, flood drainage and municipal engineering water removal tasks. |
|
192F |
8.2kW/11HP |
100mm/4", 150mm/6" |
100mm/4", 150mm/6" |
85-100(4"), 150-180(6") |
20-25(4"), 15-28(6") |
8 |
Delivers super large water flow and stable water absorption performance. Perfect for low-lying area flood drainage, large-area farmland irrigation and water conservancy engineering drainage projects. |
FAQ
1. What is the difference between a diesel centrifugal pump and a diesel self-priming pump?
Centrifugal pumps deliver higher lift, larger flow rate and stronger water pressure, specialized in long-distance pipeline delivery and uphill water lifting. Self-priming pumps feature convenient one-time water priming and simple startup. We recommend choosing our diesel centrifugal water pump if your projects require long-range or high-altitude water conveyance.
2. Can it operate in areas without mains electricity?
Totally applicable. This pump adopts independent diesel mechanical drive, needing no grid power, power cords or external charging. It can run stably in all powerless outdoor sites, with zero restriction on working locations.
3. Is it available for pumping muddy water with sediment?
It is optimized for clean water and slightly turbid water with tiny sediment. Long-term pumping of heavy slurry or water mixed with large sundries is not suggested, which will accelerate impeller abrasion and shorten pump service life. It achieves the best working performance with regular river and well water.
4. Does it support non-stop continuous operation?
Yes. Matched with high-efficiency air-cooled heat dissipation structure and heavy-duty diesel engine, it owns sufficient power reserve and thermal tolerance. It can work around the clock continuously, fully meeting long-hour operation demands for drought relief, flood control and rush construction schedules.
5. Can we upgrade pump lift and water flow?
Full customized modification is supported. We can increase engine horsepower, expand inlet and outlet caliber, upgrade hydraulic impeller and optimize internal flow channels according to on-site conditions, to boost overall flow and lift parameters, and provide one-on-one working condition matching solutions.
6. Is this pump portable enough for mountain operation?
Fitted with universal mobile wheel chassis, the pump is lightweight and labor-saving to push and relocate. It adapts to sloped orchards, mountain terraces and rugged hilly land, and has become the mainstream pumping machine for mountain agricultural irrigation.
7. Is daily operation and maintenance complicated?
It supports optional recoil start and electric start, with straightforward operation logic that new operators can master quickly. Routine maintenance only includes regular engine oil replacement and filter cleaning. Universal spare parts ensure low repair cost and short maintenance cycle.
