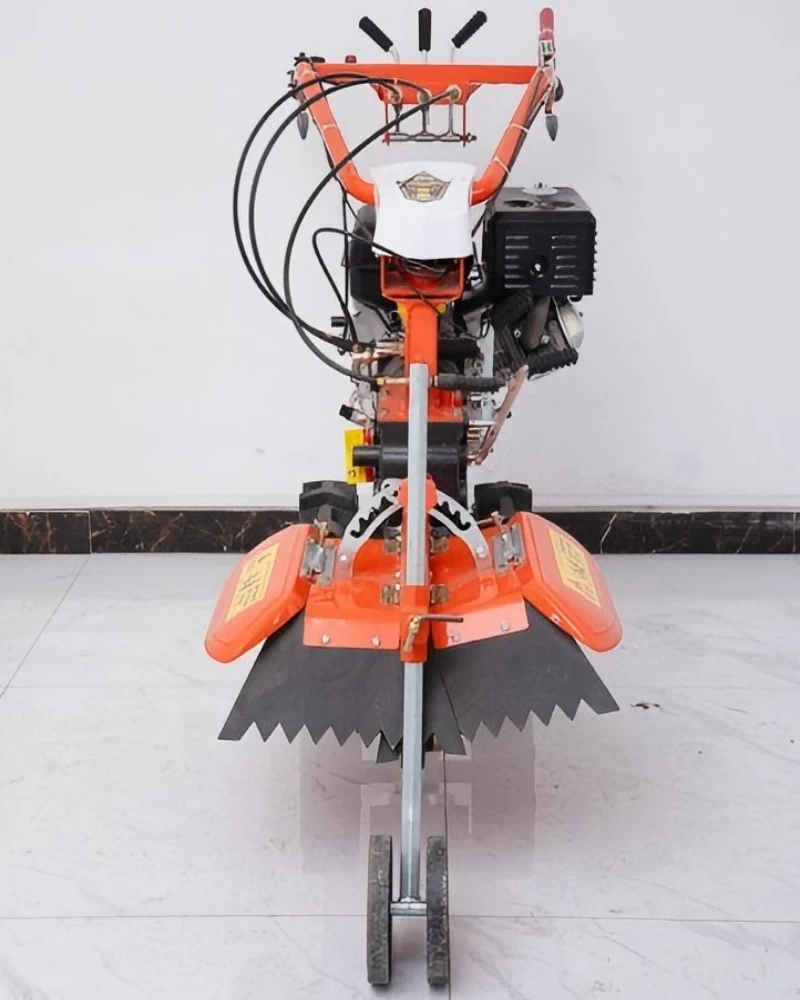

4WD Ridger Cultivator
Built exclusively for orchard, greenhouse and hilly farm cultivation, this heavy-duty 4WD Ridger Cultivator adopts full gear four-wheel drive structure. Different from common 2WD farm tillers with weak traction, it delivers synchronized power to four driving wheels, maintaining stable operation on muddy land, loose soil and sloped farmland. It can work continuously on slopes within 30 degrees without wheel slipping or vehicle stalling, solving terrain adaptation pain points for mountain planting areas.
We build a 4WD ridger cultivator that takes the hard work out of ditching, ridging and hilling in orchards, vegetable plots and hilly fields. Instead of pushing a two-wheel tiller through wet soil, you steer while four wheels pull together - the gearbox stays sealed and the handlebar rotates fully so you can work along row ends and tree trunks without leaving unploughed corners.
Every working dimension adjusts in the field: ditch depth, furrow width, hilling thickness and side offset. We spec the engine, cutter set and gear ratio around your soil and your crops, whether you grow vegetables, medicinal herbs, sugarcane or nursery stock. This 4WD ridger cultivator holds its own on sloped and muddy ground where a two-wheel unit would slip or stall.
Key Features
- Four-wheel drive sends power to all four wheels at once, so there is no rear-wheel-only slip on mud or hills.
- Dual independent gearboxes give you a low range for heavy ditching and a high range for empty travel between plots.
- The handlebar adjusts for height and rotates through a full horizontal circle, letting you run the machine forward, backward or side-on along tight row ends.
- Anti-wrap cutter discs and a sealed gearbox cut down on weed tangling and mud build-up.
- The standard tool set includes ditching blades, hilling cutters, loosening tines, a compacting roller and anti-slip drive wheels.
- Full gear direct drive means no belt and no chain - nothing to slip, stretch or snap in the field.
Technical Specifications
| Item | Detail |
|---|---|
| Drive type | 4-wheel, full gear drive |
| Transmission | Dual gearboxes, low/high forward + reverse |
| Handlebar | 360° rotating, height-adjustable |
| Engine options | Gasoline or diesel |
| Start options | Recoil, electric, or lithium one-touch |
| Working depth | Adjustable on site |
| Furrow width | Adjustable on site |
| Slope capability | Up to ~30° |
| Standard tools | Ditching blades, hilling cutters, loosening tines, compacting roller, anti-slip wheels |
Application Scenarios
This ridger cultivator slots into several growing systems without modification. Vegetable growers use it for ridging and hilling onions, ginger, garlic, chillies, strawberries and root crops. Medicinal crop bases run deep furrows and high ridges for yam, astragalus and codonopsis on sloped ground. Orchard crews rely on it for inter-row fertiliser ditching, backfilling and weed control between trees. It also handles drainage trenches on terraced fields and wind-resistant hilling for sugarcane, tobacco and nursery stock.
